Jet Cat engine

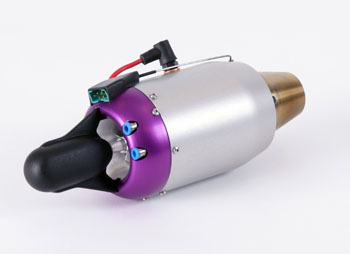

P20-SE Special Edition Turbine Complete Price: $2,795.00


Now with internal kerosene start. No propane needed!

Max Thrust: 5.5 lbs
Engine Weight: 0.8 lbs
Diameter: 2.34"
Length: 7"
RPM Range: 85,000 to 245,000
Max Temp: 690C
Fuel Rate at Full Power: 3 fl oz per minute

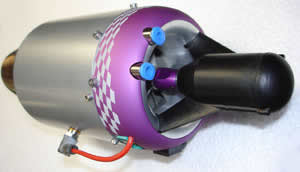

Jet Cat P60-SE Special Edition Price: $2,395.00


JetCat P60-SE SPecial Edition Turbine complete with starter includes:

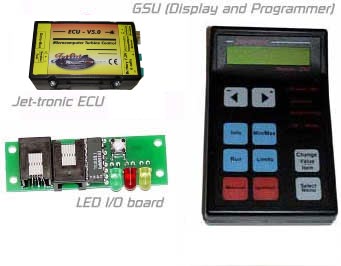

  • Jet-tronic ECU (fuel control electronics)

  • GSU (Display and Programmer)

  • LED I/O board

  • Miniature fuel pump

  • Electronic starting gas valve

  • Electronic Fuel valve

  • Fuel tubing, tubing connector set, filters, and cable set

  • 2 cell, 2500mA LiPoly battery pack

  • Starting gas tank

  • Turbine mounting clamp, RamTec compatible

  • Detailed instruction manual

Thrust: 13 LB @ 165,000 RPM

Weight: 1.87 LB, incl. starter

Diameter: 3.25 inches

RPM Range: 50,000 - 165,000

Exhaust gas temp.: 580°C -690°C

Fuel consumption: 8 oz per/min at full power

Fuel: Jet A1, 1-K kerosene

Lubrication: approximately 5% synthetic turbine oil in the fuel

Maintenance interval: 25 hours

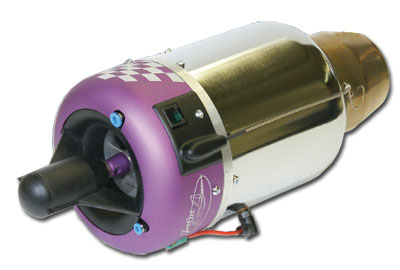

JetCat P80-SE turbine Price: $2,195.00


Introducing the new JetCat P80-SE with more POWER and enhanced reliability.

The P80-SE continues our extreemly successfull P80 engine. The new design of the P80-SE incorporates an optimized compressor/diffusor-system, resulting in higher engine performance and reliability.

The engine follows throttle commands almost without delay. In addition to the outstanding features of or ECU V6.0, the new ECU V6.3 has an „auto power down“ function built in, which allows to switch off the engine power supply (--> receiver off) before the engine cool down sequence has been finished. In this case the ECU will stay powered on, finish the cool down sequence and then auto power down itself.

JetCat P-80-SE turbine complete with starter includes:

  • Jet-tronic ECU (fuel control electronics)
  • GSU (Display and Programmer)
  • LED I/O board
  • Miniature fuel pump
  • Electronic starting gas valve
  • Electronic Fuel valve
  • Fuel tubing, tubing connector set, filters, and cable set
  • 2 cell, 2500mA LiPoly battery pack
  • Starting gas tank
  • Turbine mounting clamp, RamTec compatible
  • Detailed instruction manual

    Thrust: 22 LB @ 125,000 RPM

    Weight: 2.9 LB, incl. starter

    Diameter: 4.4 inches

    RPM Range: 35,000 - 125,000

    Exhaust gas temp.: 580°C -690°C

    Fuel consumption: 9 oz per/min at full power

    Fuel: Jet A1, 1-K kerosene

    Lubrication: approximately 5% synthetic turbine oil in the fuel

    Maintenance interval: 25 hours

    P80-SE Thrust Chart

    RPM Thrust
    35,000 0.8
    85,000 8.0
    93,000 10.0
    101,000 12.5
    110,000 15.0
    117,000 17.0
    118,000 18.0
    120,000 20.0

    125,000

    		 22.00

    The values are approximate and can vary slightly from engine to engine.
    Values at Standard Temperature and Pressure.





JetCat P100RX turbine Price: $2,595.00


The future is here! Jetcat P100-RX includes our state of the art V10 ECU. Single fuel and cable connection to the engine. No external solenoids! Internal kero start and exhaust gas temperature probe. New smart fuel pump with easy mount aluminum case. Includes 9.9V LiFe battery. A123 compatible! Comes with everything you need to install into your plane.

� Compact outline and form factor
� Internal kerosene start
� Internal EGT sensor!
� Internal solenoids, only one fuel connection to the engine
� New us-system� fuel pump
� Single wiring connection from ECU to engine
� New miniature/lightweight ECU V10.0
� Battery: 2-cell LiPo or optional 3-cell LiFe (e.g. A123)

Max Thrust: >22 lbs
Engine Weight: 2.38 lbs
Diameter: 3.78"
Length: 9.55"
RPM Range: 42,000 to 152,000
Max Temp: 730C
Fuel Rate at Full Power: 12 fl oz per minute

JetCat P140-RX turbine Price: $3,295.00


JetCat P-120-SX turbine complete with starter includes:


  • Jet-tronic ECU (fuel control electronics)

  • CAD designed and machined from billet compressor wheel

  • Internal kerosene starting plug for single fuel operation. Fast startup!

  • GSU (Display and Programmer)

  • LED I/O board

  • Miniature fuel pump

  • Electronic starting gas valve

  • Electronic Fuel valve

  • Fuel tubing, tubing connector set, filters, and cable set

  • The future is here! Jetcat P140-RX includes our state of the art V10 ECU. Single fuel and cable connection to the engine. No external solenoids! Internal kero start and exhaust gas temperature probe. New smart fuel pump with easy mount aluminum case. Includes 9.9V LiFe battery. A123 compatible! Comes with everything you need to install into your plane. 32lbs of thrust!

    � Compact outline and form factor
    � Internal kerosene start
    � Internal EGT sensor!
    � Internal solenoids, only one fuel connection to the engine
    � New us-system� fuel pump
    � Single wiring connection from ECU to engine
    � New miniature/lightweight ECU V10.0
    � Battery: 2-cell LiPo or optional 3-cell LiFe (e.g. A123)

    Max Thrust: >32 lbs
    Engine Weight: 3.5 lbs
    Diameter: 4.37"
    Length: 12.9"
    RPM Range: 33,000 to 125,000
    Max Temp: 710C
    Fuel Rate at Full Power: 17.2 fl oz per minute
JetCat P180-RX turbine Price: $3,995.00



The future is here! Jetcat P180-RX includes our state of the art V10 ECU. Single fuel and cable connection to the engine. No external solenoids! Internal kero start and exhaust gas temperature probe. New smart fuel pump with easy mount aluminum case. Includes 9.9V LiFe battery. A123 compatible! Comes with everything you need to install into your plane.

� Compact outline and form factor
� Internal kerosene start
� Internal EGT sensor!
� Internal solenoids, only one fuel connection to the engine
� New us-system� fuel pump
� Single wiring connection from ECU to engine
� New miniature/lightweight ECU V10.0
� Battery: 2-cell LiPo or optional 3-cell LiFe (e.g. A123)

Max Thrust: >40 lbs
Engine Weight: 3.5 lbs
Diameter: 4.37"
Length: 12.9"
RPM Range: 33,000 to 125,000
Max Temp: 730C
Fuel Rate at Full Power: 20.6 fl oz per minute

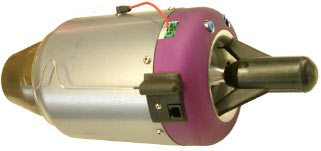

JetCat P200 turbine Price: $5,195.00

JetCat P-200 turbine comes complete with HEAVY DUTY starter and includes:
  • Jet-tronic ECU (fuel control electronics)
  • GSU (Display and Programmer)
  • LED I/O board · Miniature fuel pump
  • Electronic starting gas valve
  • Electronic Fuel valve
  • Fuel tubing, tubing connector set, filters, and cable set
  • 2 cell, 3800mA LiPoly battery pack
  • Starting gas tank
  • Turbine mounting clamp
  • Detailed instruction manual
    Thrust: 52 lbs @ 112,000 RPM

    Weight: 5 LB

    Diameter: 5.12 inches

    RPM Range: 32,000 - 110,000 RPM
    Exhaust gas temp.: 580°C-720°C

    Fuel consumption: 24 oz per/min at full power

    Fuel: Jet A1, 1-K kerosene

    Lubrication: approximately 5% synthetic turbine oil in the fuel

    Maintenance interval: 25 hours
