Flyeaglejet ARF
Five Action Multi-Function Valve
|
|
|
|
| Flyeaglejet Powerbox (Available soon) | |
 |
|
|

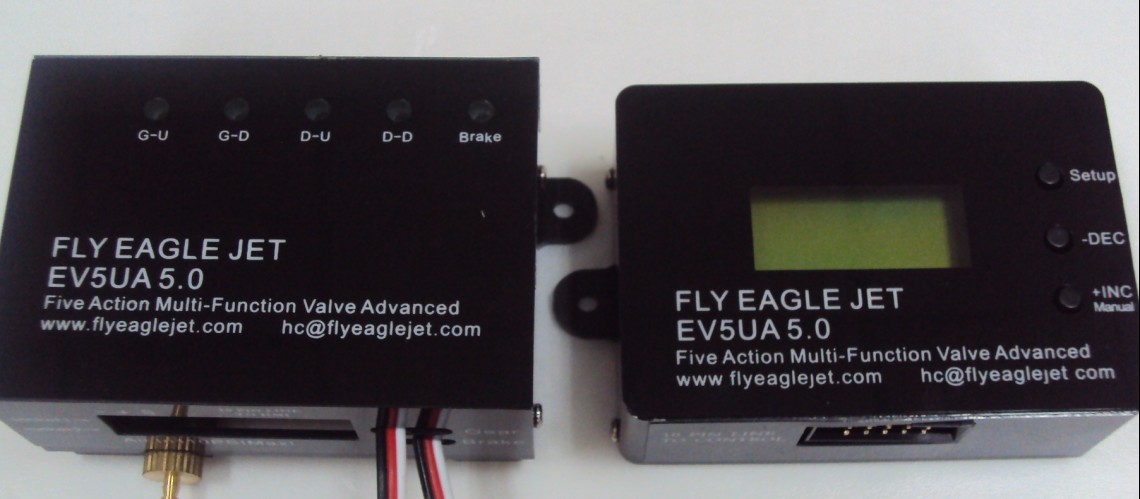

Flyeaglejet ARF Five Action Multi-Function Valve Advanced No: EV5UA 2.0 |
|
screen voltage and air pressure
|
.JPG)
Gear Failsafe
|
.JPG)
Door Timing set up
|
.JPG)

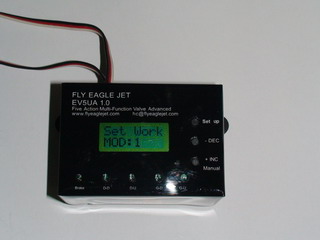

Mode choose |
| Instruction Manual：PDF Download | |
1.
Introduction:
Flyeaglejet EV5UA 2.0 small, light, easy to operate、safe
etc with LCD screen to show all functions including gear failsafe,
door timing set up and ABS brake function etc. This one valve
replaces 2 Dual Action Valves, 1 Brake Valve, 1 Sequencer and 3
Servos.
2.

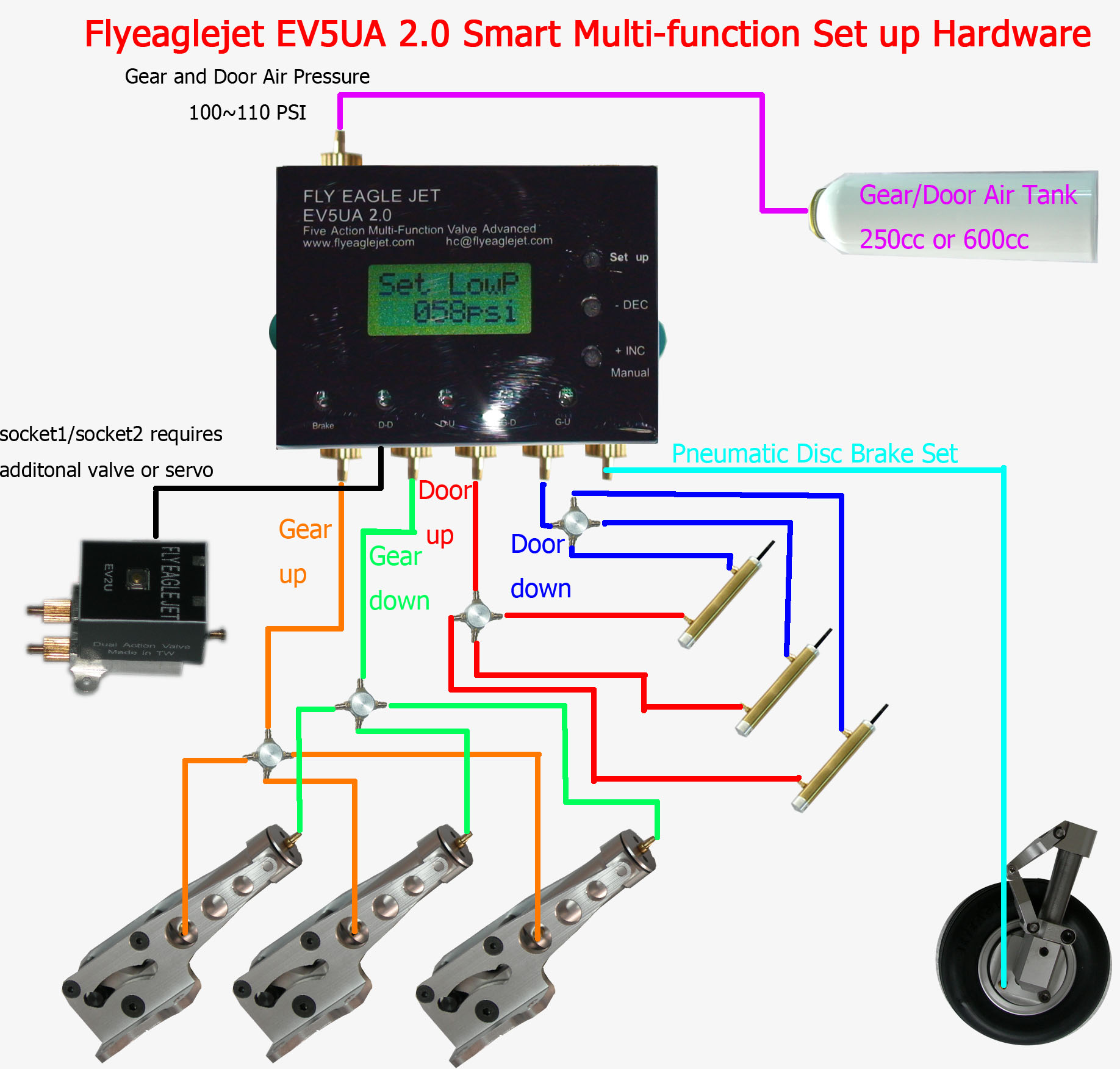

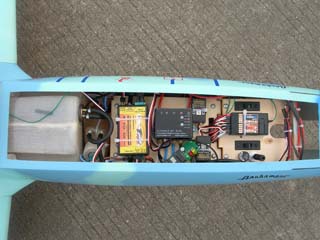

Connection:
3.

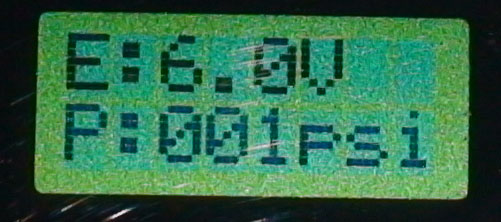

LCD
E：Screen
for Battery voltage
P：Screen
for air pressure
4.
Press Set-up to choose functions
l

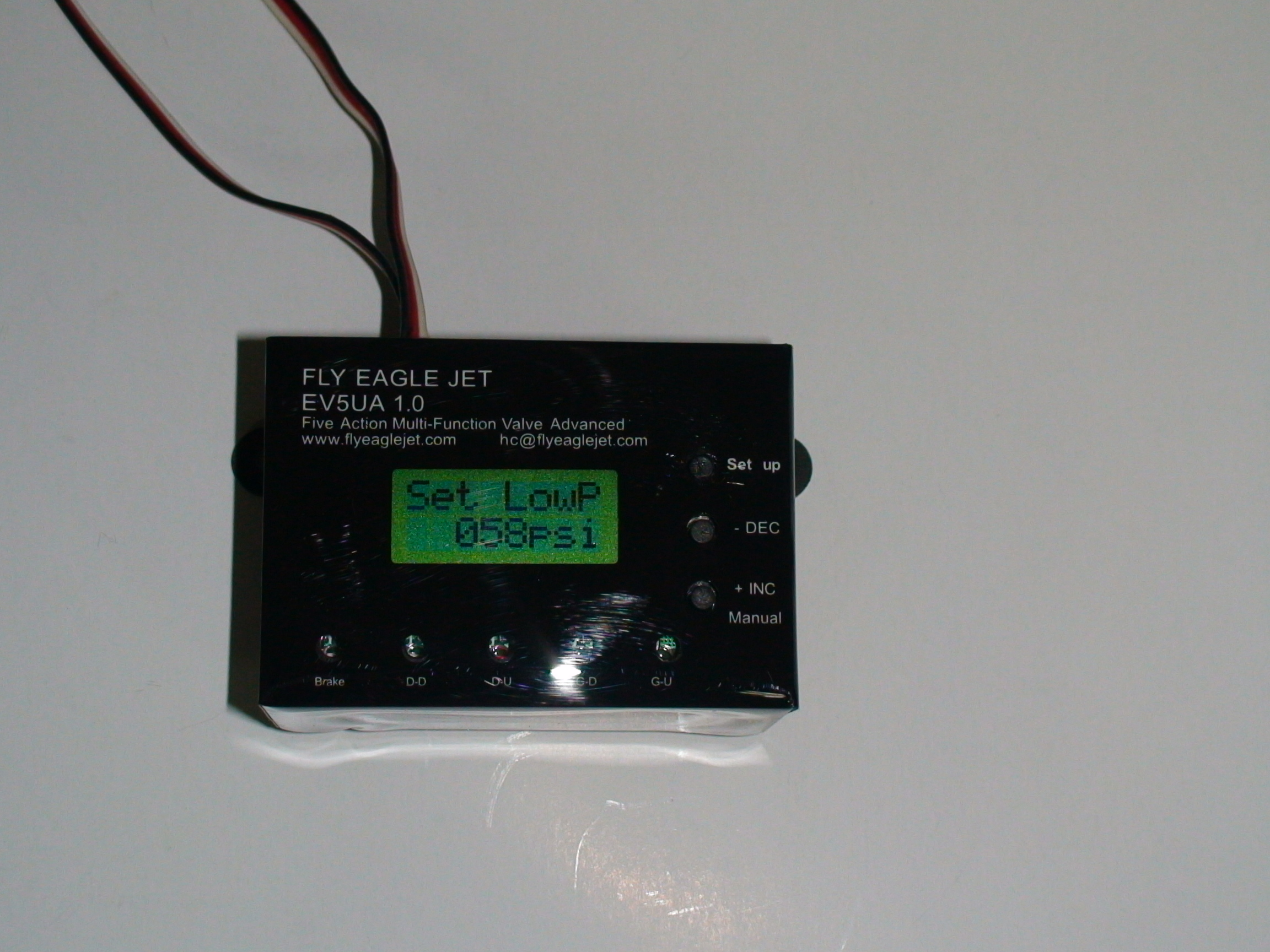

Set Lowp: Gear
failsafe function
Press
+INC / -DEC to adjust air pressure number for gear failsafe. When
air pressure is under set up, gear will be down automatically. (When
set up is under 49psi, gear failsafe function closed)

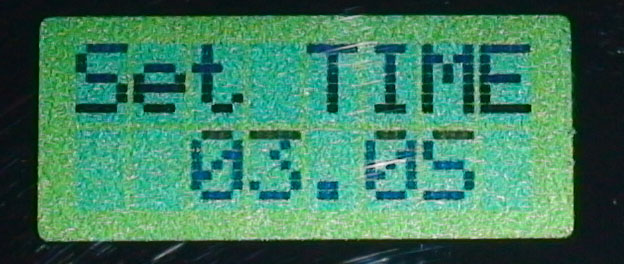

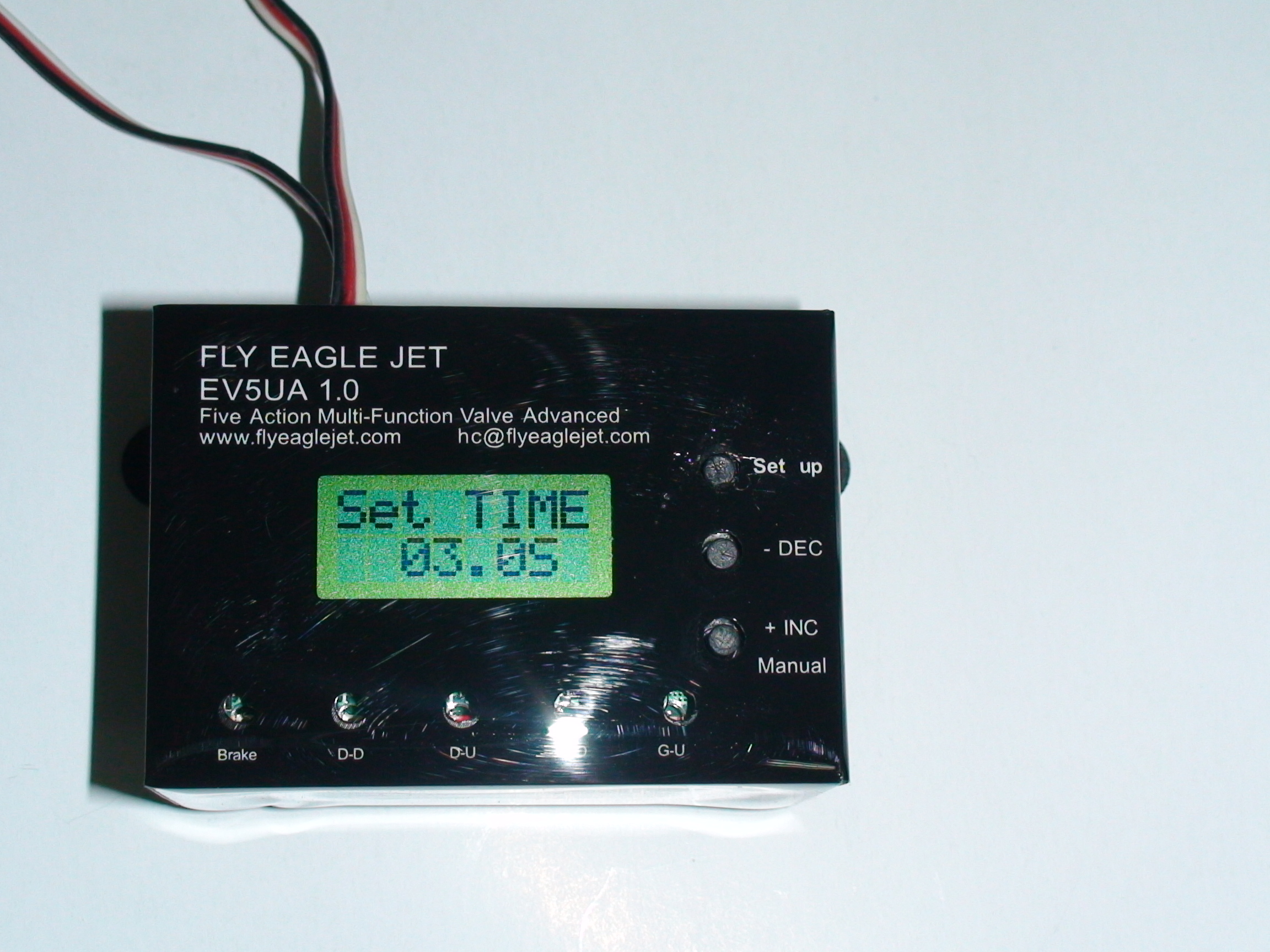

Set TIME: Gear
and gear doors action timing set up
Press
+INC / -DEC to change time (range 1-15 seconds)
l
Set Work: Choose
mode
Press +INC / -DEC Choose 1,2,3, mode，function
as below：
(socket1/socket2 requires additional EV2U valve)
Mode-1
Aircraft take-off: Gear /socket1/socket2 ~ Set TIME ~ Door up.
Aircraft landing: Door down ~ Set TIME ~ Gear /socket1/socket2 down
Mode-2
Aircraft take-off: socket1 down ~ Set TIME ~ Gear/socket2 up ~ Set
TIME ~ Door/socket1 up.
Aircraft landing: Door/socket1 down ~ Set TIME ~ Gear/socket2 down
~ Set TIME ~ socket1 up.
Mode-3
Aircraft take-off: socket1 down ~ Set TIME ~ Gear/socket2 up ~ Set
TIME ~ Door up.
Aircraft landing: Door down ~ Set TIME ~ Gear/socket2 down ~ Set
TIME ~ socket1 up.
5.
Other
Operating voltage: 6.0 Volts for DC● Consume current: 700 mA - Max. ● Operating pressure range: 0～110psi ● Air Pressure accuracy: ± 0.5 % ● Temperature range: -10 to +75 °C ● Dimensions: L 68 x W 48x H 36 mm ● Weight :
|
|
|
Flyeaglejet ARF EV2U No: EV2U |
|
|
|

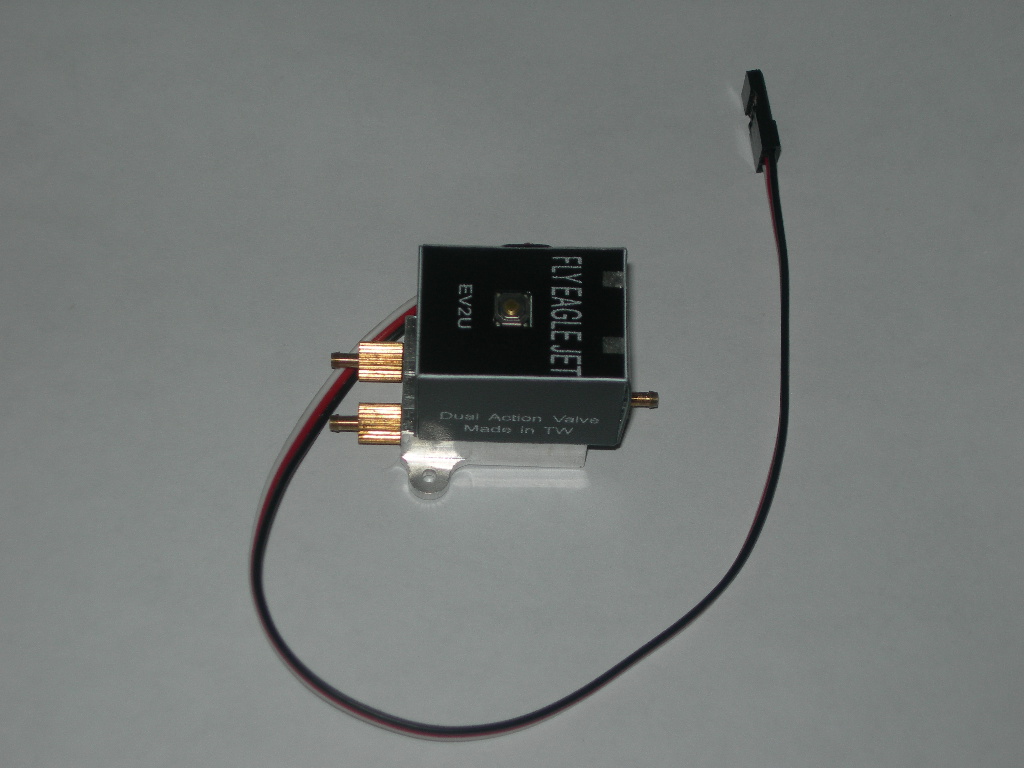

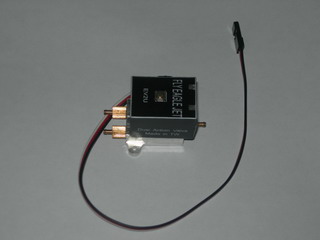

This Flyeaglejet new electronic dual action valve offers
electronic control of retracts or gear doors in one convienient
electronic valve. Supplied with barbed airline fittings.
This new " Dual Action Valve " has following qualities
: |
|
Flyeaglejet ARF Five Action Multi-Function Valve No: EV5U 2.0 (Special EV5U2.0 valve for Mig29, F100 and F14. If you order EV5U2.0 valve for the three models, please tell us) |
|
 |
 |
 |
 |
 |
.JPG) |
 |
|
|

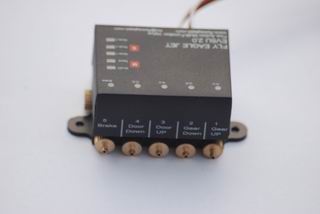

This FLY EAGLE JET 5 port electronic valve can operate gear up-down, doors open-close and brake. You also can use it for operating canopy to unlock, open, close and lock for purpose. |
|
|
Important: 1. Operating Voltage: 4.8V-6.0V 2. Please keep the multi-valve dry. The moist air will cause the valve life decrease. 3. After each flight, please release all air out from the pressure tank, this makes valve life increase. 4. Inject some oil (such as pure silicone shock oil) into the valve to keep the valve lubricative from time to time. 5. Keep not being too high pressure in the valve, This might cause the valve to be damaged. We recommend input air pressure not over 110 psi, Guarantee conditions: When receiving product, please check the item completely, such as light, air input, air output, any leaking issue etc. If the item is defective, please send it back for exchange. After 7 days, customer should pay shipping fee for repair. Item is only for exchange, not for refund. The valve has three months repair warrantee in properly usage, treatment on the valve which valid from the initial date of purchase. The guarantee covers proven material faults that will be corrected by us at no charge to you. The guarantee does not cover any additional claims, such as consequent damage or damage by person fault such as drop into water, excessive vibration, extend the voltage etc. |
|
